Kennametal

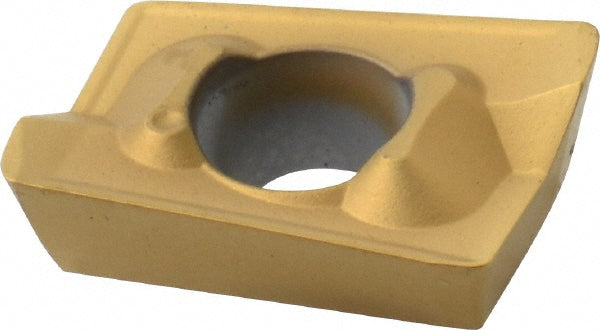

ADKT1545PDERGB Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1156247
MFR# 1156247ISO/ANSI# ADKT1545PDERGBCat# ADKT1545PDERGBSeries ADKT
$38.50List $46.99
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1156247 is a ADKT1545PDERGB solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGB
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size23
Insert size code2328
Insert styleADKT
Iso codeADKT1545PDERGB
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberADKT1545PDERGB
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle5
Relief angle15.00
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3937
