Kennametal

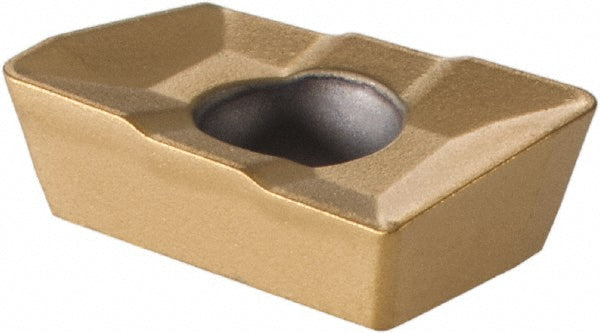

ADPT1035PDERGP Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157449
MFR# 1157449ISO/ANSI# ADPT1035PDERGPCat# ADPT1035PDERGPSeries ADPT
$30.74List $37.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157449 is a ADPT1035PDERGP solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1142
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1622
Insert styleADPT
Iso codeADPT1035PDERGP
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADPT1035PDERGP
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle30
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
