Kennametal

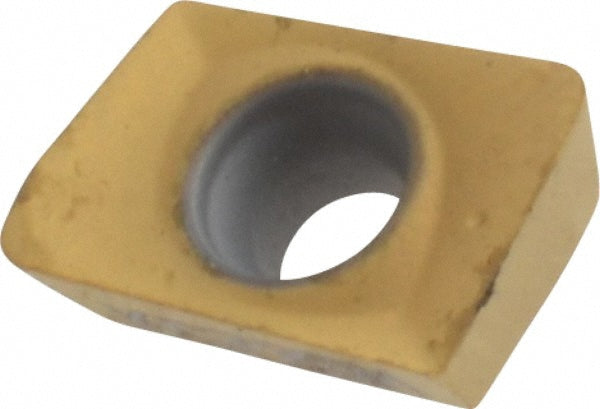

ADKT1035PDERLC Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157451
MFR# 1157451ISO/ANSI# ADKT1035PDERLCCat# ADKT1035PDERLCSeries ADKT
$27.24List $33.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157451 is a ADKT1035PDERLC solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1142
Included angle degree85
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code1622
Insert styleADKT
Iso codeADKT1035PDERLC
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberADKT1035PDERLC
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle7
Relief angle15.00
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.2638
