Kennametal

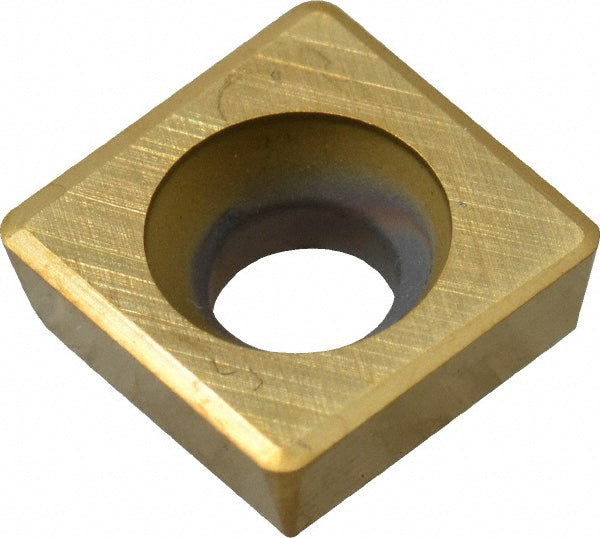

SPEB090308T Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157503
MFR# 1157503ISO/ANSI# SPEB090308TCat# SPEB090308TSeries SPEB
$34.17List $41.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157503 is a SPEB090308T solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1559
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size32
Insert size code322
Insert styleSPEB
Iso codeSPEB090308T
Manufacturers catalog numberSPEB090308T
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
