Kennametal
SPEB090308 Solid Carbide Insert, Grade KC730, TiN - Kennametal 1157544
MFR# 1157544ISO/ANSI# SPEB090308Cat# SPEB090308Series SPEB
$32.89List $40.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC730
MaterialSolid Carbide
CoatingTiN
Description

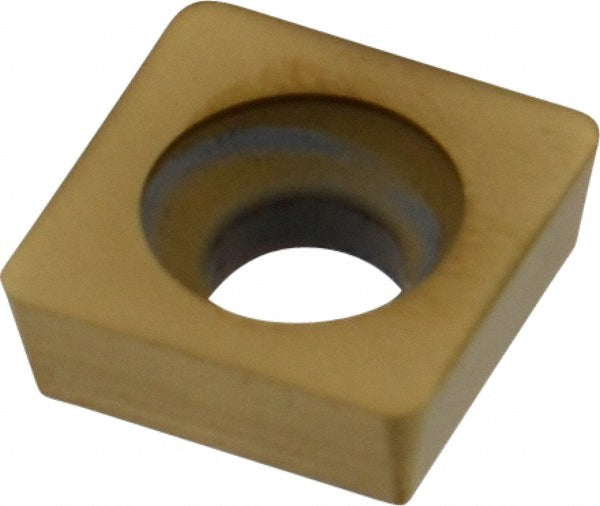

The Kennametal 1157544 is a SPEB090308 solid carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1563
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size32
Insert size code322
Insert styleSPEB
Iso codeSPEB090308
Manufacturers catalog numberSPEB090308
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.5000
Relief angle11.00
Thickness in1/8
Thickness range0.1250 to 0.1500
