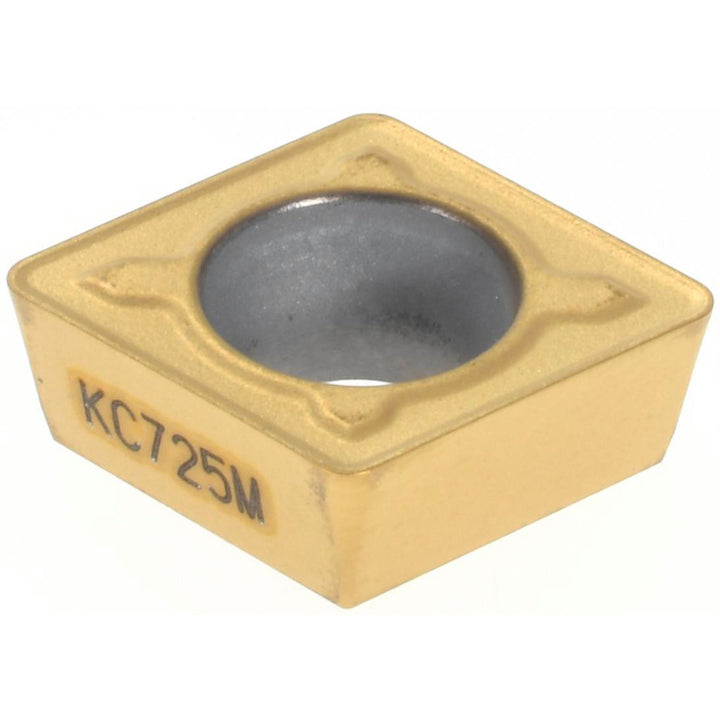

CPMT09T308MF Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1157795

Kennametal

CPMT09T308MF Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1157795

MFR# 1157795ISO/ANSI# CPMT09T308MFCat# CPMT09T308MFSeries CPMT

$33.58List $40.99 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1157795 is a CPMT09T308MF solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeCPMT3252MF
Chip breakerMF
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size3
Insert size code32.52
Insert styleCPMT
Iso codeCPMT09T308MF
Length0.3808
Length range0.3200 to 0.4000
Manufacturers catalog numberCPMT09T308MF
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.2540
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in3/8
