Kennametal

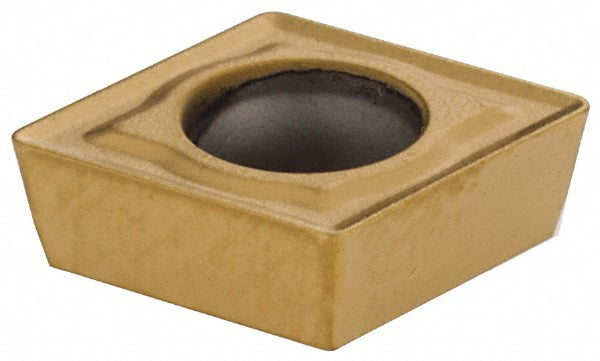

CPMT060204MF Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1157796
MFR# 1157796ISO/ANSI# CPMT060204MFCat# CPMT060204MFSeries CPMT
$33.23List $40.57
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1157796 is a CPMT060204MF solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeCPMT2151MF
Chip breakerMF
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Hole diameter0.1102
Included angle degree80
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size2
Insert size code21.51
Insert styleCPMT
Iso codeCPMT060204MF
Length0.2540
Length range0.0000 to 0.3200
Manufacturers catalog numberCPMT060204MF
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle25
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
