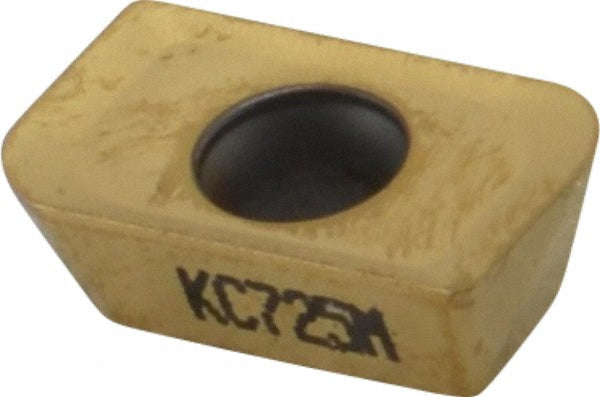

APKT160432R Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157882

Kennametal

APKT160432R Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157882

MFR# 1157882ISO/ANSI# APKT160432RCat# APKT160432RSeries APKT

$31.62List $38.59 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1157882 is a APKT160432R solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Corner radius0.1260
Hole diameter0.1732
Included angle degree85
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size26
Insert size code2638
Insert styleAPKT
Iso codeAPKT160432R
Length0.6638
Length range0.6500 to 0.7000
Manufacturers catalog numberAPKT160432R
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.5000
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Relief angle11.00
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in3/8
