Kennametal

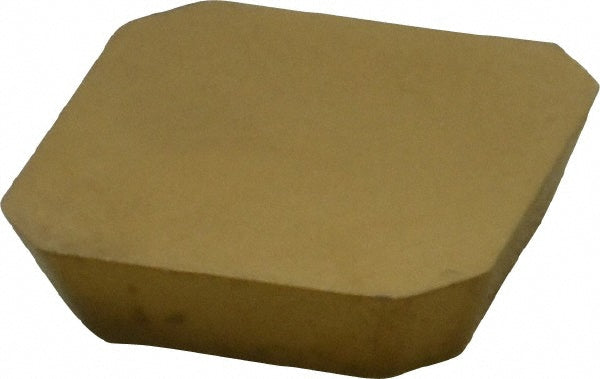

SEAN1203AFENLN Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1157894
MFR# 1157894ISO/ANSI# SEAN1203AFENLNCat# SEAN1203AFENLNSeries SEAN
$32.71List $39.93
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1157894 is a SEAN1203AFENLN solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerLN
Coating finishTiN
Coating processPVD
Corner radius0.0449
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSEAN
Iso codeSEAN1203AFENLN
Manufacturers catalog numberSEAN1203AFENLN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle0
Relief angle20.00
Thickness in1/8
Thickness range0.1250 to 0.1500
