Kennametal

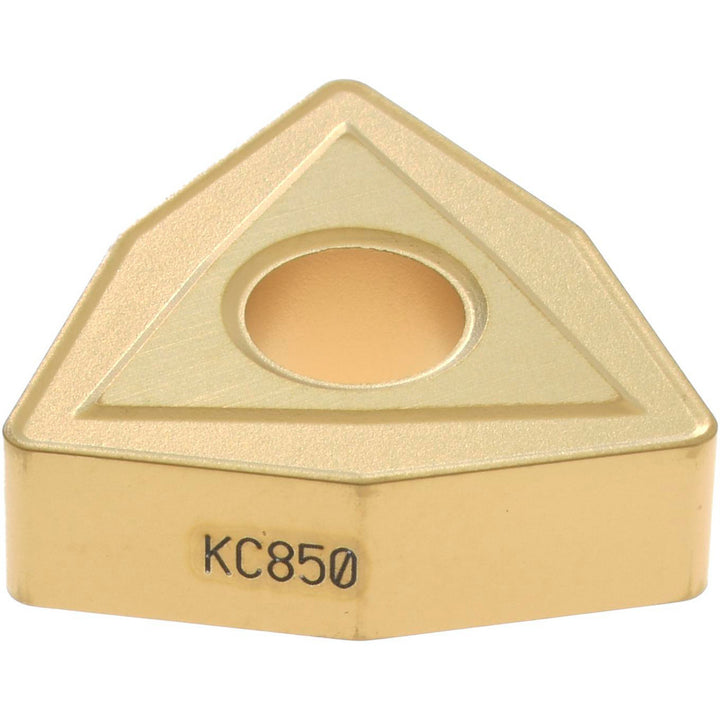

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1158348
MFR# 1158348ISO/ANSI# WNMG080402Series KENLOC
$25.82List $31.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1158348 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle80
Industry standard numberDNGP431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3421
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080402
Iso size code080402
Length range0.3000 - 0.4000
Manufacturers catalog number1158348
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Relief angle0
Side clearanceNegative
Tolerance codeM
