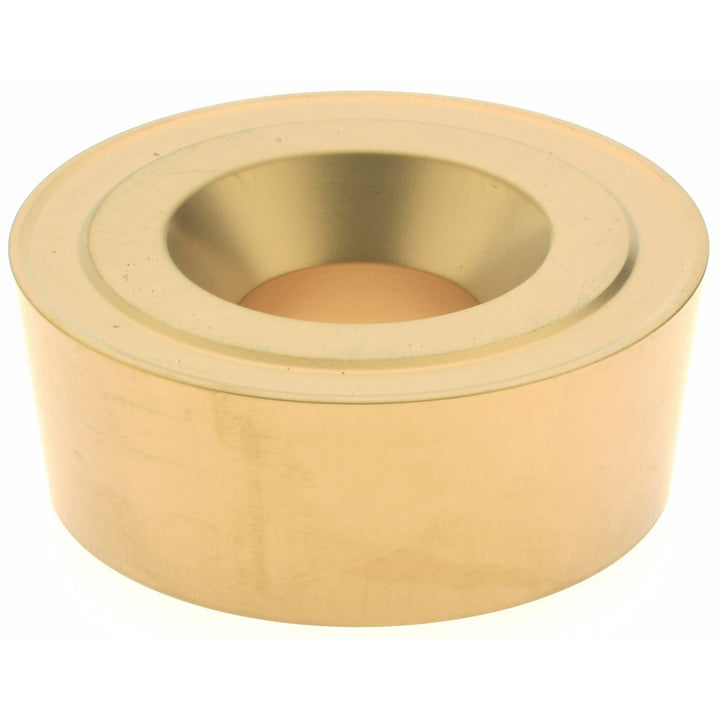

R - Round 1" IC Carbide Insert, Grade KC850, TiC - Kennametal 1158479

Kennametal

R - Round 1" IC Carbide Insert, Grade KC850, TiC - Kennametal 1158479

MFR# 1158479ISO/ANSI# RCMH250900Series Screw-On

$108.68List $132.66 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeR - Round
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1158479 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeRCMH86
Ansi size code86
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/2
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.3594
Included angle360
Industry standard numberRCMH86K
Inscribed circle in1
Insert handNeutral
Insert holding methodScrew
Insert length in1
Insert materialCarbide
Insert shapeR - Round
Insert size code86
Insert styleRCMH
Insert thickness in3/8
Iso insert codeRCMH250900
Iso size code250900
Length range0.7000 - 10.0000
Manufacturers catalog number1158479
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1
Wiper edgeNo
