Kennametal

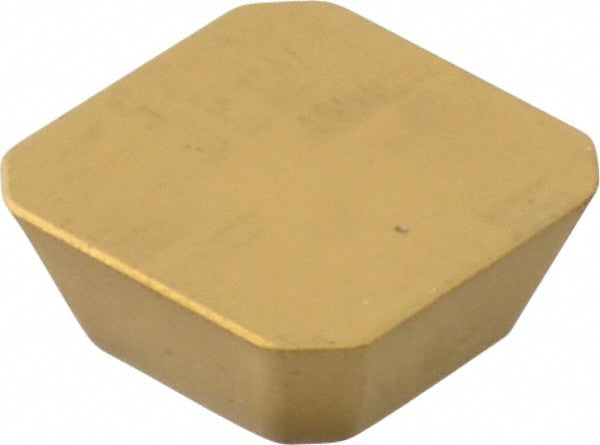

SEKN1204AFSNGN Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1159625
MFR# 1159625ISO/ANSI# SEKN1204AFSNGNCat# SEKN1204AFSNGNSeries SEKN
$34.24List $41.79
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1159625 is a SEKN1204AFSNGN solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerGN
Coating finishTiN
Coating processPVD
Corner radius0.0394
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size43
Insert size code43
Insert styleSEKN
Iso codeSEKN1204AFSNGN
Manufacturers catalog numberSEKN1204AFSNGN
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Rake angle0
Relief angle20.00
Thickness in3/16
Thickness range0.1850 to 0.2000
