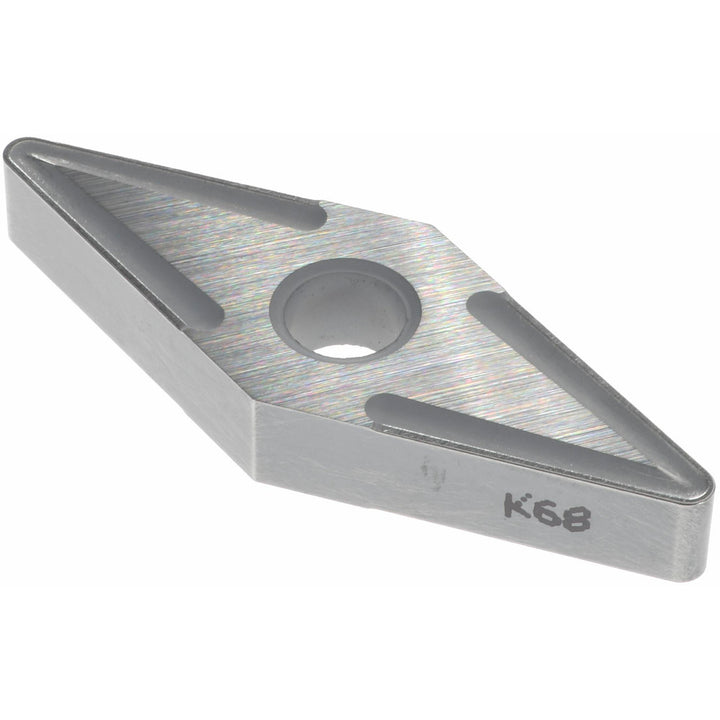

V - Diamond (Rhombic) 35-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1160071

Kennametal

V - Diamond (Rhombic) 35-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1160071

MFR# 1160071ISO/ANSI# VNMG220412Series KENLOC

$32.62List $39.82 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeK68
MaterialCarbide

Description

The Kennametal 1160071 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeVNMG433
Ansi size code433
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle35
Industry standard numberVNMG433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code433
Insert styleVNMG
Insert thickness in3/16
Iso insert codeVNMG220412
Iso size code220412
Length range0.7000 - 10.0000
Manufacturers catalog number1160071
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
