Kennametal

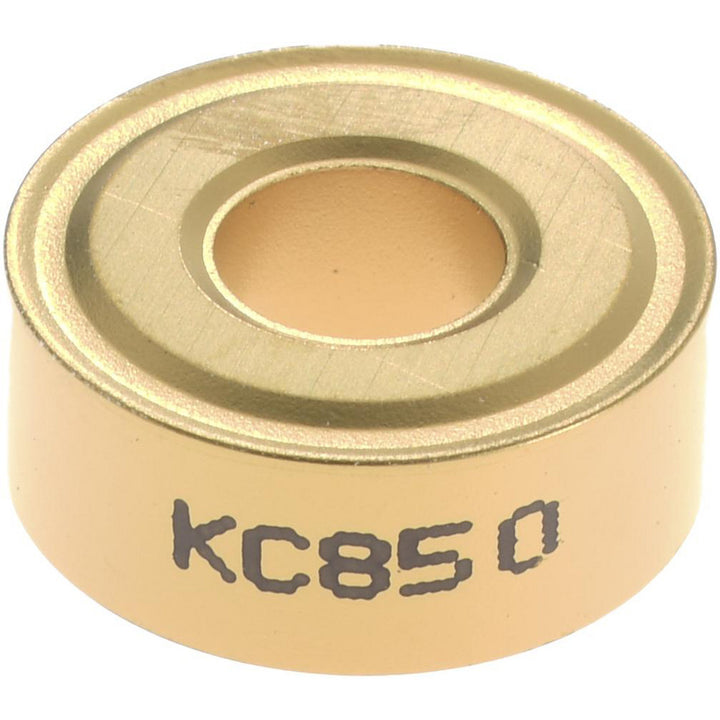

R - Round 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160160
MFR# 1160160ISO/ANSI# RNMG120400Series KENLOC
$22.07List $26.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160160 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeRNMG43
Ansi size code43
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/4
Cutting edge styleChamfered; Honed
Full radiusYes
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle360
Industry standard numberRNMG43
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeR - Round
Insert size code43
Insert styleRNMG
Insert thickness in3/16
Iso insert codeRNMG120400
Iso size code120400
Length range0.5000 - 0.6000
Manufacturers catalog number1160160
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
