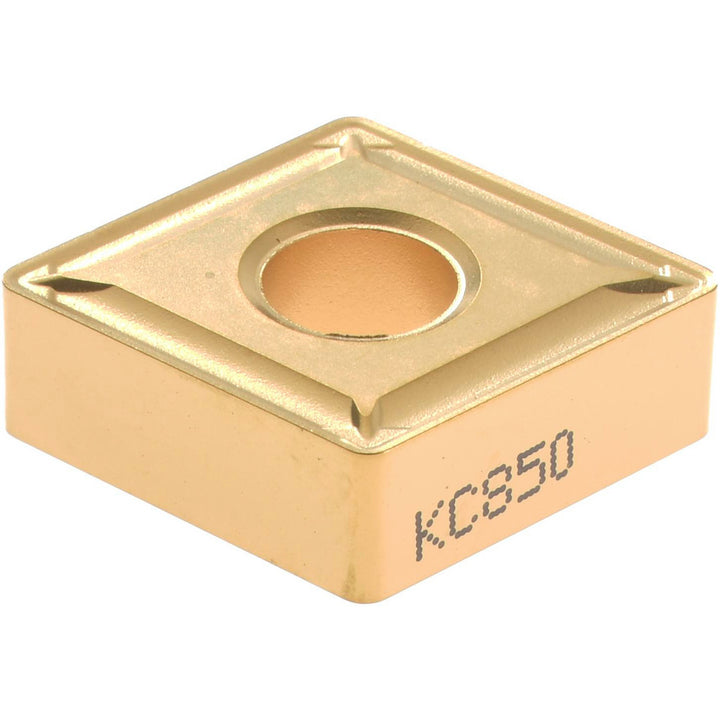

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160167

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160167

MFR# 1160167ISO/ANSI# CNMG120408Series KENLOC

$25.38List $30.98 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1160167 is a carbide indexable insert, grade KC850, TiC coated.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle80
Industry standard numberTNMS332
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso insert codeCNMG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1160167
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
