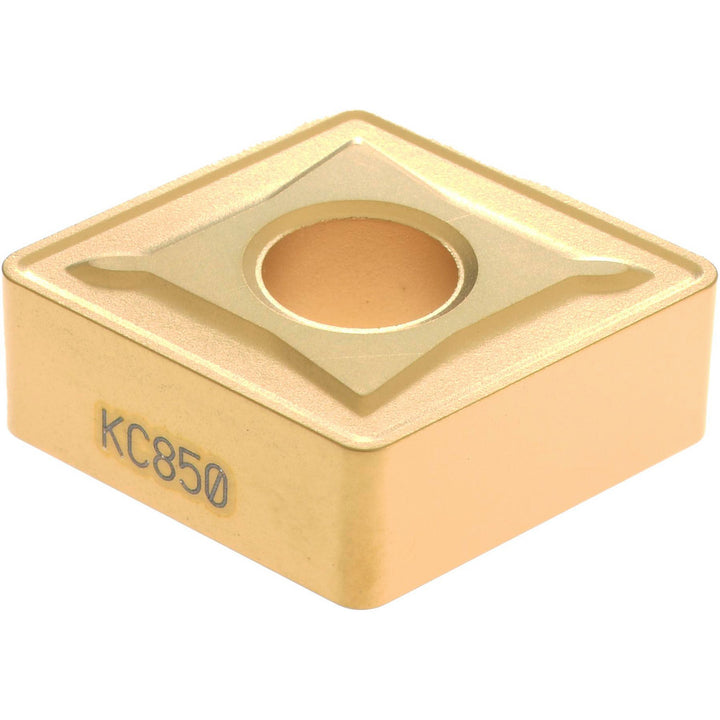

C - Diamond (Rhombic) 80-Deg 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160191

Kennametal

C - Diamond (Rhombic) 80-Deg 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160191

MFR# 1160191ISO/ANSI# CNMG160612Series KENLOC

$41.01List $50.05 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1160191 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeCNMG543
Ansi size code543
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2500
Included angle80
Industry standard numberCNMG543
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso insert codeCNMG160612
Iso size code160612
Length range0.6000 - 0.6500
Manufacturers catalog number1160191
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
