Kennametal

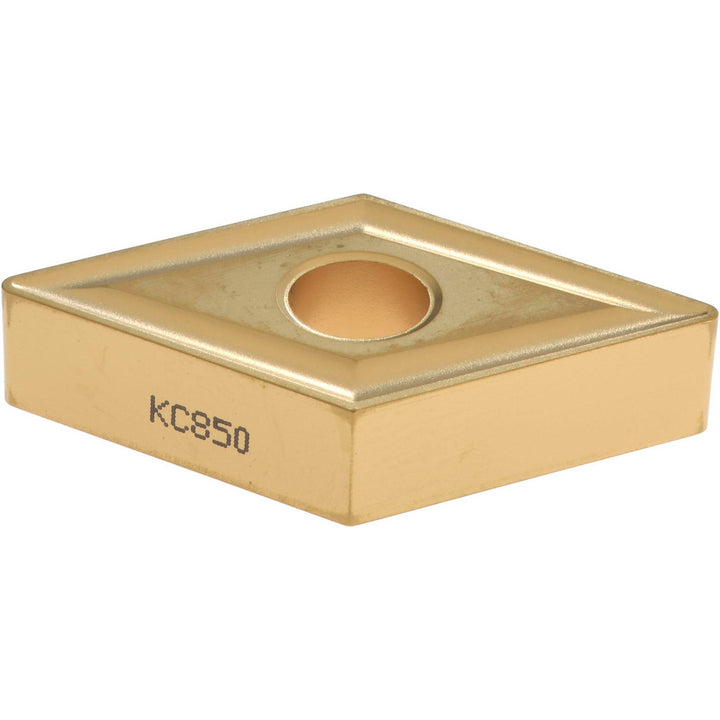

D - Diamond (Rhombic) 55-Deg 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160229
MFR# 1160229ISO/ANSI# DNMG190608Series KENLOC
$54.12List $66.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160229 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeDNMG542
Ansi size code542
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2500
Included angle55
Industry standard numberDNMG542
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.5260
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code542
Insert styleDNMG
Insert thickness in1/4
Iso insert codeDNMG190608
Iso size code190608
Length range0.7000 - 10.0000
Manufacturers catalog number1160229
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
