Kennametal

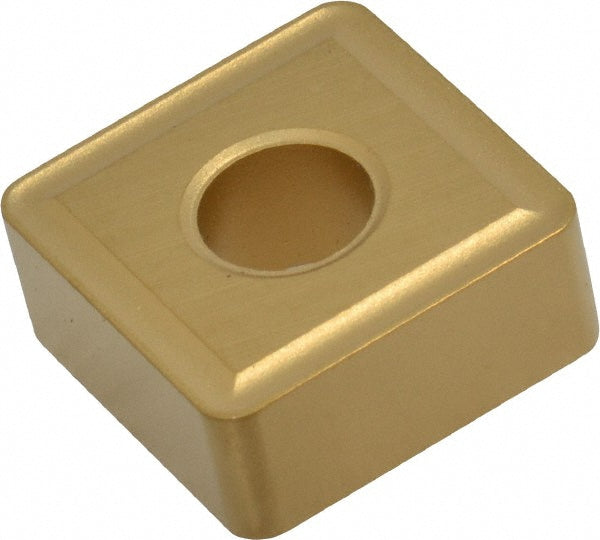

SNMG544 Carbide Insert, Grade KC850, TiC - Kennametal 1160262
MFR# 1160262ISO/ANSI# SNMG150616Series KENLOC
$36.09List $44.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160262 is a SNMG544 carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeSNMG544
Ansi size code544
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2500
Included angle90
Industry standard numberSNMG544
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in5/8
Insert materialCarbide
Insert shapeS - Square
Insert size code544
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG544
Iso insert codeSNMG150616
Iso size code150616
Length range0.6000 - 0.6500
Manufacturers catalog number1160262
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
