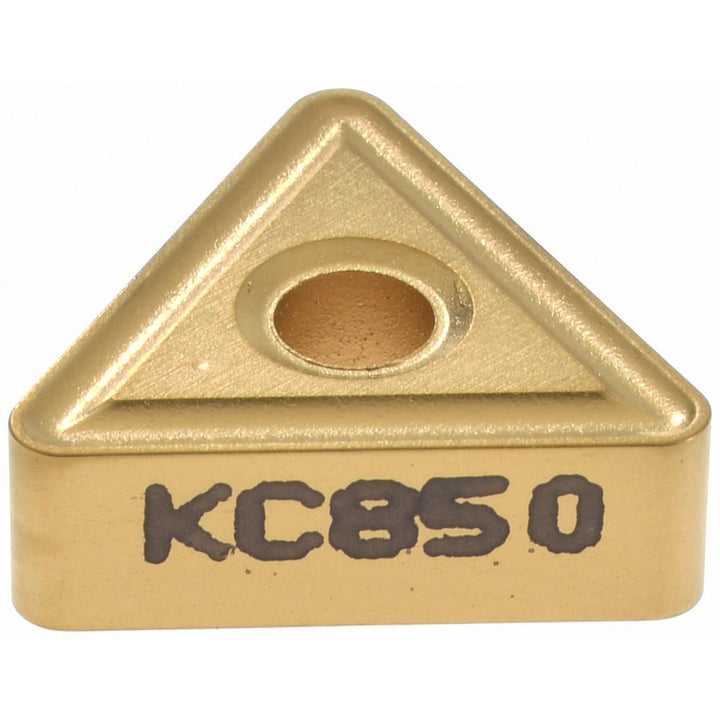

T - Triangle 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160288

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160288

MFR# 1160288ISO/ANSI# TNMG110308Series KENLOC

$16.95List $20.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1160288 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeTNMG222
Ansi size code222
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.0890
Included angle60
Industry standard numberTNMG222
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code222
Insert styleTNMG
Insert thickness in1/8
Iso insert codeTNMG110308
Iso size code110308
Length range0.4000 - 0.5000
Manufacturers catalog number1160288
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
