Kennametal

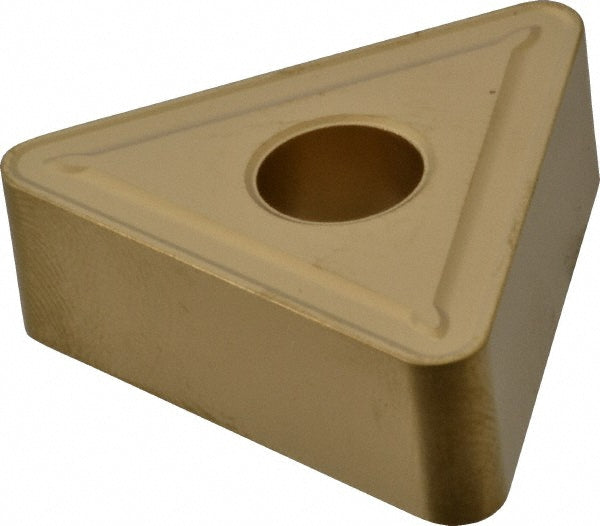

T - Triangle 3/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1160326
MFR# 1160326ISO/ANSI# TNMG330924Series KENLOC
$84.32List $102.92
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160326 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTNMG666
Ansi size code666
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.3125
Included angle60
Industry standard numberTNMG666
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2992
Insert materialCarbide
Insert shapeT - Triangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Iso insert codeTNMG330924
Iso size code330924
Length range0.7000 - 10.0000
Manufacturers catalog number1160326
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width1.2992
Wiper edgeNo
