Kennametal

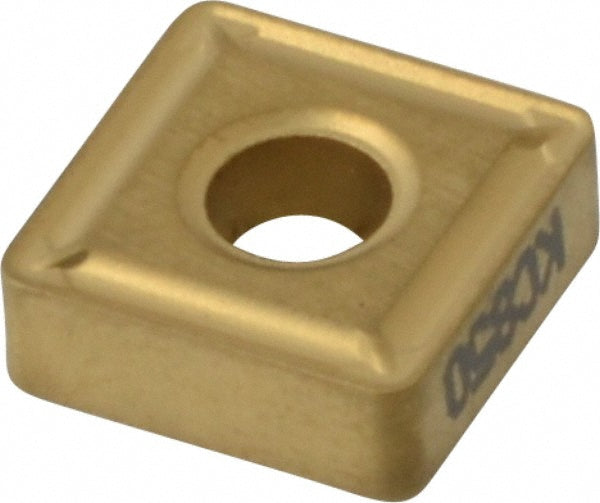

SNMG322 Carbide Insert, Grade KC850, TiC - Kennametal 1160370
MFR# 1160370ISO/ANSI# SNMG090308Series KENLOC
$18.53List $22.62
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1160370 is a SNMG322 carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeSNMG322
Ansi size code322
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1500
Included angle90
Industry standard numberCCMT325111
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert materialCarbide
Insert shapeS - Square
Insert size code322
Insert styleSNMG
Insert thickness in1/8
Iso codeSNMG322
Iso insert codeSNMG090308
Iso size code090308
Manufacturers catalog number1160370
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
