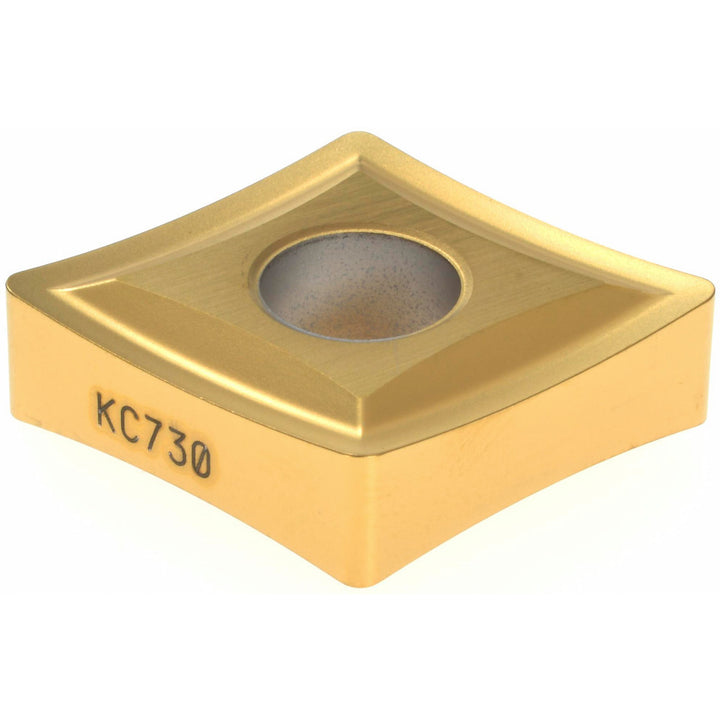

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160874

Kennametal

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160874

MFR# 1160874ISO/ANSI# CNMP190612Series KENLOC

$54.58List $66.62 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1160874 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeCNMP643
Ansi size code643
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.3125
Included angle80
Industry standard numberCNMP643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMP
Insert thickness in1/4
Iso insert codeCNMP190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number1160874
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
