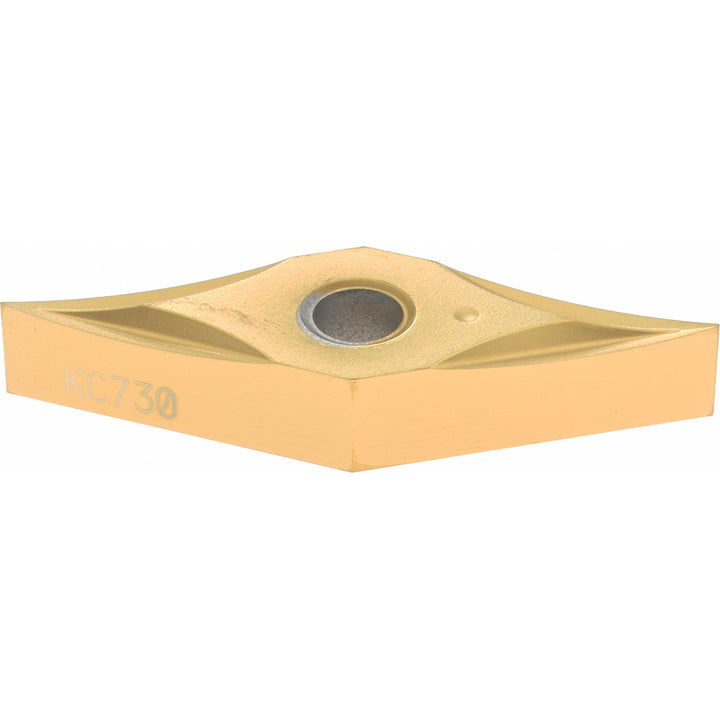

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160888

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160888

MFR# 1160888ISO/ANSI# VNGP160401Series KENLOC

$31.98List $39.03 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1160888 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVNGP3302
Ansi size code3302
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius0.0039
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Industry standard numberVNGP3302
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3302
Insert styleVNGP
Insert thickness in3/16
Iso insert codeVNGP160401
Iso size code160401
Length range0.7000 - 10.0000
Manufacturers catalog number1160888
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
