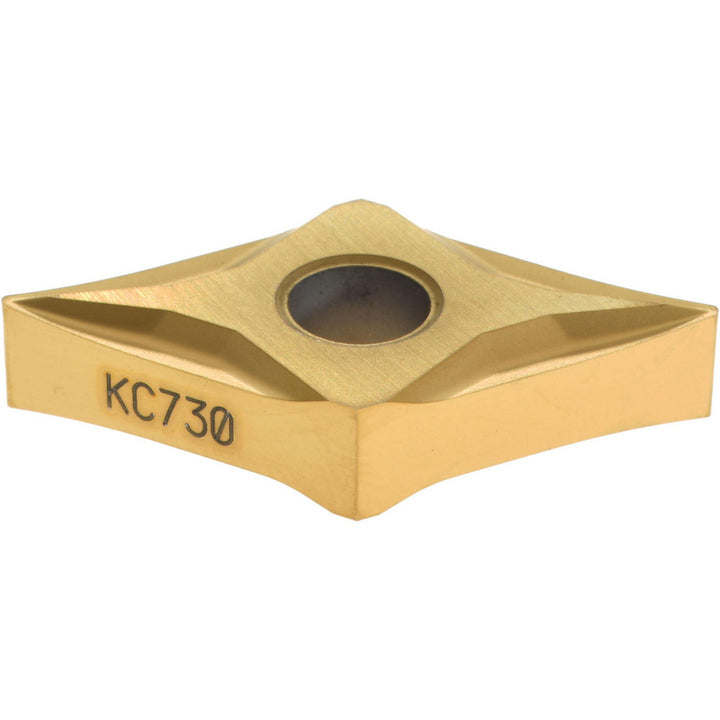

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160915

Kennametal

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160915

MFR# 1160915ISO/ANSI# DNGP150404Series KENLOC

$39.60List $48.33 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1160915 is a carbide indexable insert, grade KC730, TiN coated.

Specifications

Ansi insert codeDNGP431
Ansi size code431
Chip breakerP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Industry standard numberRCMH2507M0TUPG
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code431
Insert styleDNGP
Insert thickness in3/16
Iso insert codeDNGP150404
Iso size code150404
Length range0.6000 - 0.6500
Manufacturers catalog number1160915
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeG
