Kennametal

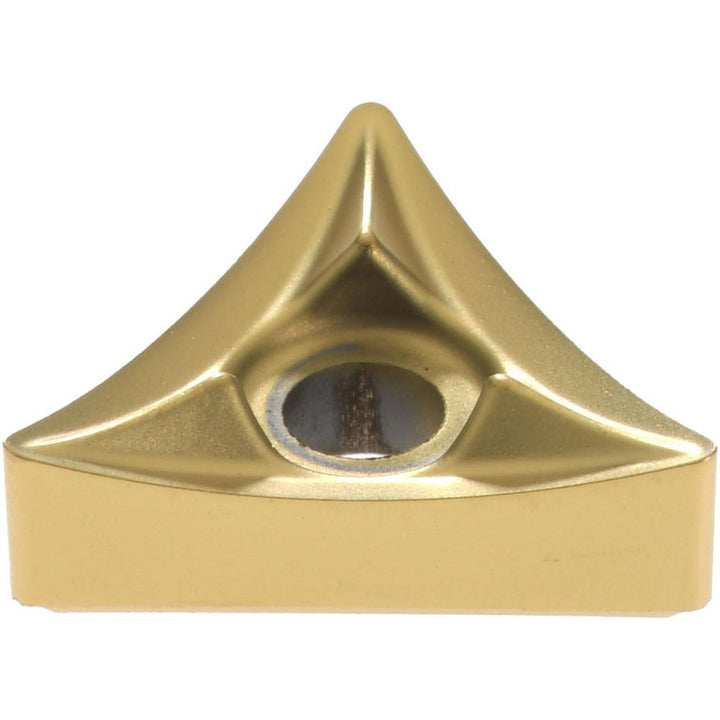

T - Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160929
MFR# 1160929ISO/ANSI# T110304
$22.18List $27.07
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1160929 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Ansi insert codeT221
Ansi size code221
Coating finishTiN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0945
Included angle60
Industry standard numberTCMT3251LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleT
Insert thickness in1/8
Iso insert codeT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number1160929
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Relief angle11
Side clearancePositive
