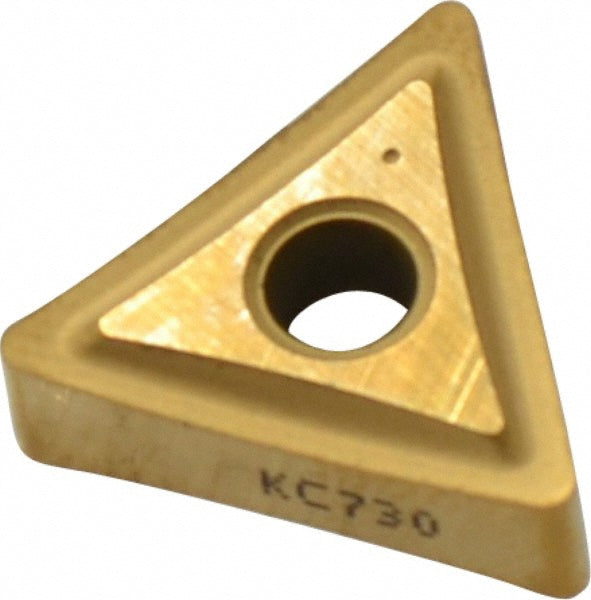

Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160933

Kennametal

Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1160933

MFR# 1160933ISO/ANSI# TNGP332Series KENLOC

$25.11List $30.65 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1160933 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerCommon
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle60degree
Industry standard numberTNGP332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCarbide
Insert shapeTriangle
Insert size code332
Insert styleTNGP
Insert thickness in3/16
Length range0.6000 - 0.6500
Manufacturers catalog number1160933
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width0.6496in
Wiper edgeNo
