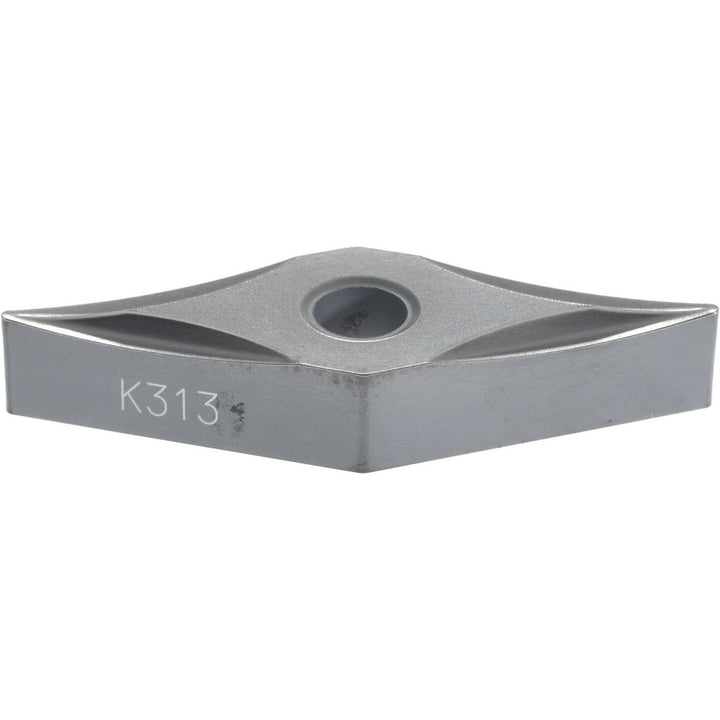

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1161124

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1161124

MFR# 1161124ISO/ANSI# VNMP160404Series KENLOC

$25.97List $31.69 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeK313
MaterialCarbide

Description

The Kennametal 1161124 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeVNMP331
Ansi size code331
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1500
Included angle35
Industry standard numberVNMP331
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMP
Insert thickness in3/16
Iso insert codeVNMP160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number1161124
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
