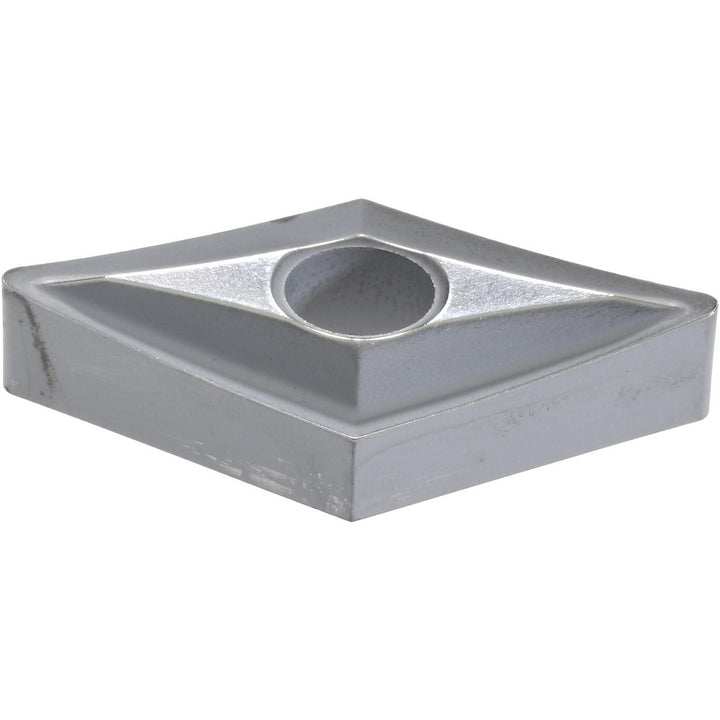

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1161168

Kennametal

D - Diamond (Rhombic) 55-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1161168

MFR# 1161168ISO/ANSI# DNMS150408Series KENLOC

$29.93List $36.54 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeK68
MaterialCarbide

Description

The Kennametal 1161168 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeDNMS432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle55
Industry standard numberDNMS432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMS
Insert thickness in3/16
Iso insert codeDNMS150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number1161168
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
