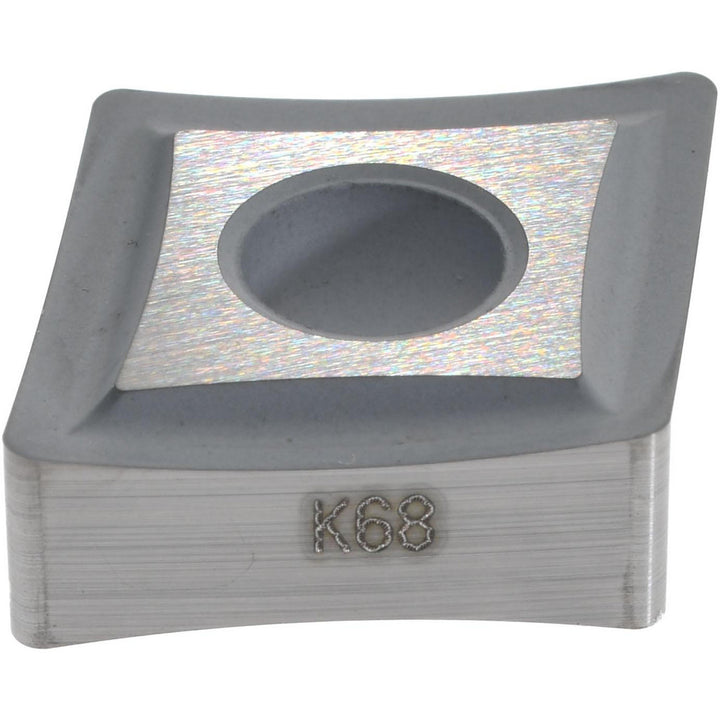

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1161187

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K68 - Kennametal 1161187

MFR# 1161187ISO/ANSI# CNGP120408Series KENLOC

$27.65List $33.75 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeK68
MaterialCarbide

Description

The Kennametal 1161187 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeCNGP432
Ansi size code432
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.2031
Included angle80
Industry standard numberCNGP432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGP
Insert thickness in3/16
Iso insert codeCNGP120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1161187
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
