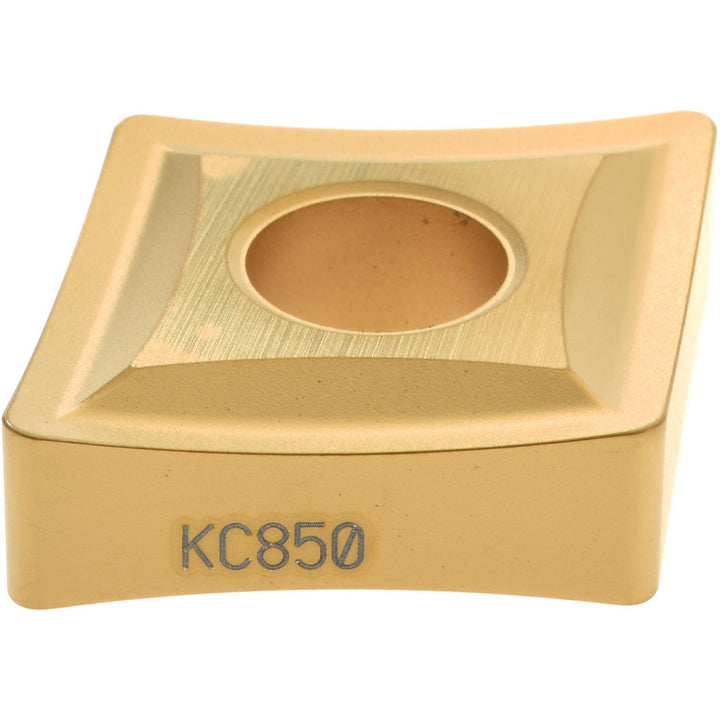

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161291

Kennametal

C - Diamond (Rhombic) 80-Deg 3/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161291

MFR# 1161291ISO/ANSI# CNMP190612Series KENLOC

$54.58List $66.62 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1161291 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeCNMP643
Ansi size code643
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.3125
Included angle80
Industry standard numberCNMP643
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code643
Insert styleCNMP
Insert thickness in1/4
Iso insert codeCNMP190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number1161291
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
