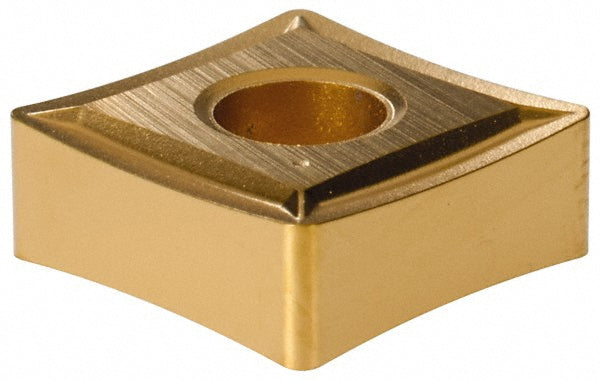

SNMP432 Carbide Insert, Grade KC850, TiC - Kennametal 1161320

Kennametal

SNMP432 Carbide Insert, Grade KC850, TiC - Kennametal 1161320

MFR# 1161320ISO/ANSI# SNMP120408Series KENLOC

$27.01List $32.97 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1161320 is a SNMP432 carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeSNMP432
Ansi size code432
Chip breakerK
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.2031
Included angle90
Industry standard numberSNMP432K
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSNMP
Insert thickness in3/16
Iso codeSNMP432
Iso insert codeSNMP120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1161320
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
