Kennametal

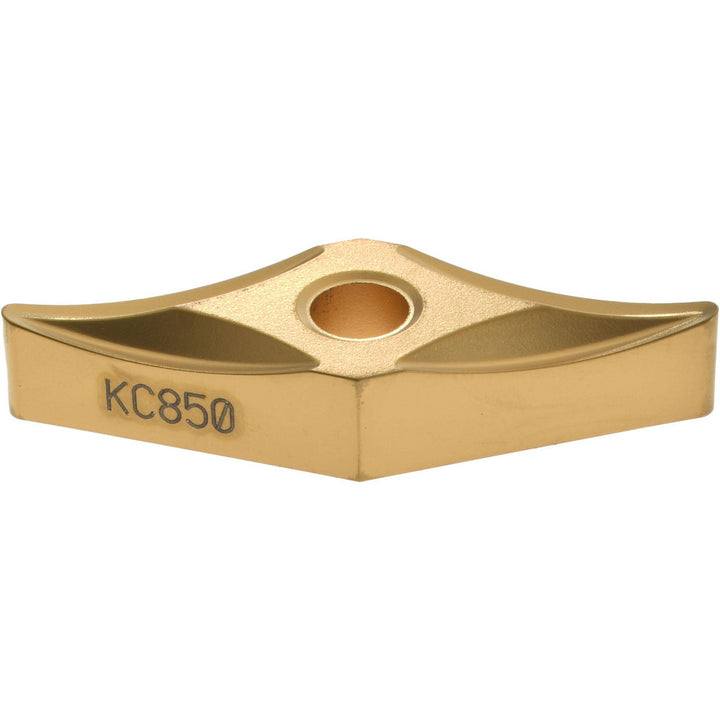

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161358
MFR# 1161358ISO/ANSI# VNMS160408Series KENLOC
$33.78List $41.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1161358 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeVNMS332
Ansi size code332
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1500
Included angle35
Industry standard numberVNMS332
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVNMS
Insert thickness in3/16
Iso insert codeVNMS160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number1161358
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
