Kennametal

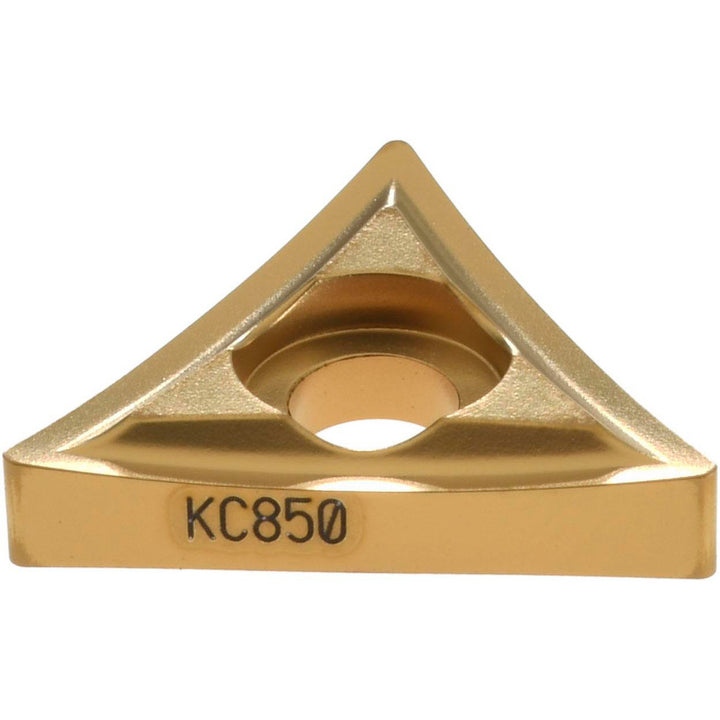

T - Triangle 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161362
MFR# 1161362ISO/ANSI# T160304Series Screw-On
$26.17List $31.94
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1161362 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeT321
Ansi size code321
Chip breakerP
Chip breaker operationRoughing; Medium Machining
Coating finishTiC
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1516
Included angle60
Industry standard numberCCGT21505HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleT
Insert thickness in1/8
Iso insert codeT160304
Iso size code160304
Length range0.6000 - 0.6500
Manufacturers catalog number1161362
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
