Kennametal

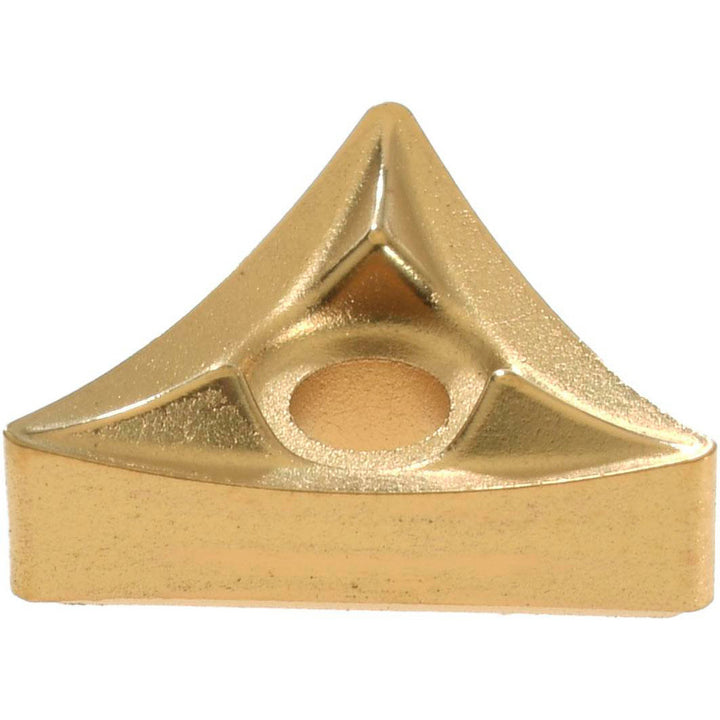

T - Triangle 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1161364
MFR# 1161364ISO/ANSI# T110304
$22.84List $27.87
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1161364 is a carbide indexable insert, grade KC850, TiC coated.
Specifications
Ansi insert codeT221
Ansi size code221
Coating finishTiC
Coating processCVD
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.0945
Included angle60
Industry standard numberCCGT32505HP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleT
Insert thickness in1/8
Iso insert codeT110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number1161364
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Relief angle11
Side clearancePositive
