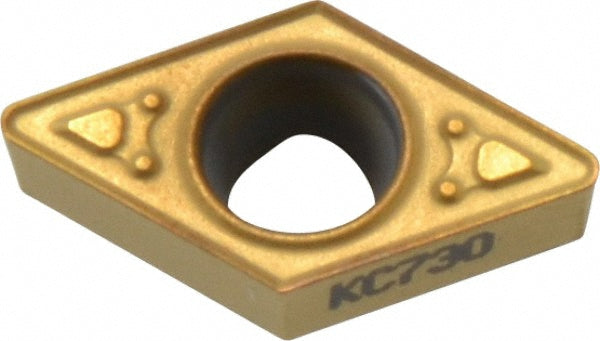

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161846

Kennametal

D - Diamond (Rhombic) 55-Deg 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161846

MFR# 1161846ISO/ANSI# DCMT11T308Series Screw-On

$23.56List $28.76 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161846 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDCMT3252
Ansi size code3252
Chip breakerMF
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle55
Industry standard numberDCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T308
Iso size code11T308
Length range0.7000 - 10.0000
Manufacturers catalog number1161846
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
