Kennametal

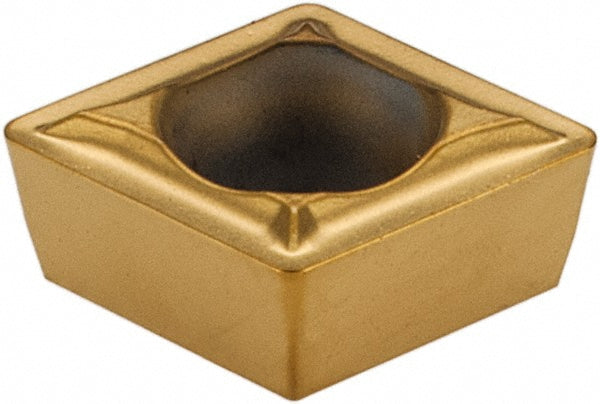

Diamond 7/32" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161913
MFR# 1161913Series Screw-On
$23.14List $28.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
ShapeDiamond
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1161913 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ChipbreakerLF
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1043
Included angle80
Inscribed circle in7/32
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code18151
Insert styleCPMT
Length0.2224
Manufacturers catalog number1161913
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
StandardsANSI; ISO
Width0.2188
