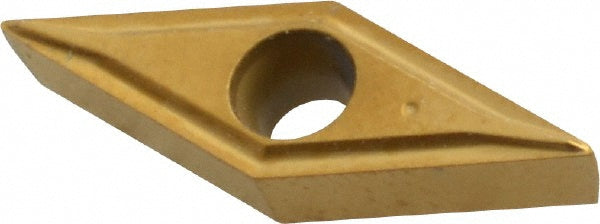

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161971

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161971

MFR# 1161971ISO/ANSI# VBMT110302Series Screw-On

$34.96List $42.68 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161971 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeVBMT2205
Ansi size code2205
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1142
Included angle35
Industry standard numberVBMT2205LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number1161971
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
