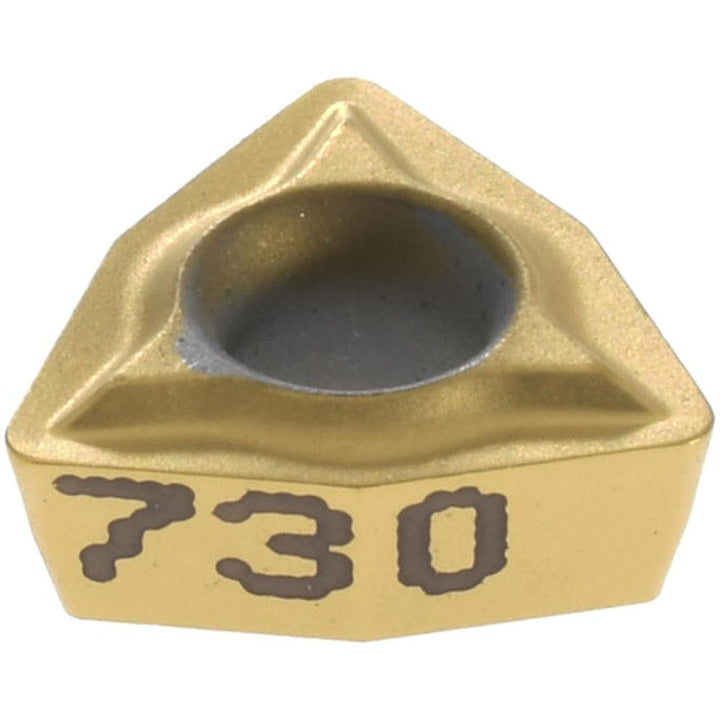

W - Trigon 80-Deg 3/16" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161978

Kennametal

W - Trigon 80-Deg 3/16" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161978

MFR# 1161978ISO/ANSI# WPMTS3T104Series Screw-On

$23.70List $28.92 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/16
ShapeW - Trigon 80-Deg
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161978 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeWPMT15121
Ansi size code15121
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0850
Included angle80
Industry standard numberWPMT15121LF
Inscribed circle in3/16
Insert handNeutral
Insert holding methodScrew
Insert length0.2566
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code15121
Insert styleWPMT
Insert thickness in5/64
Iso insert codeWPMTS3T104
Iso size codeS3T104
Length range0.0000 - 0.3000
Manufacturers catalog number1161978
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.2566
Wiper edgeNo
