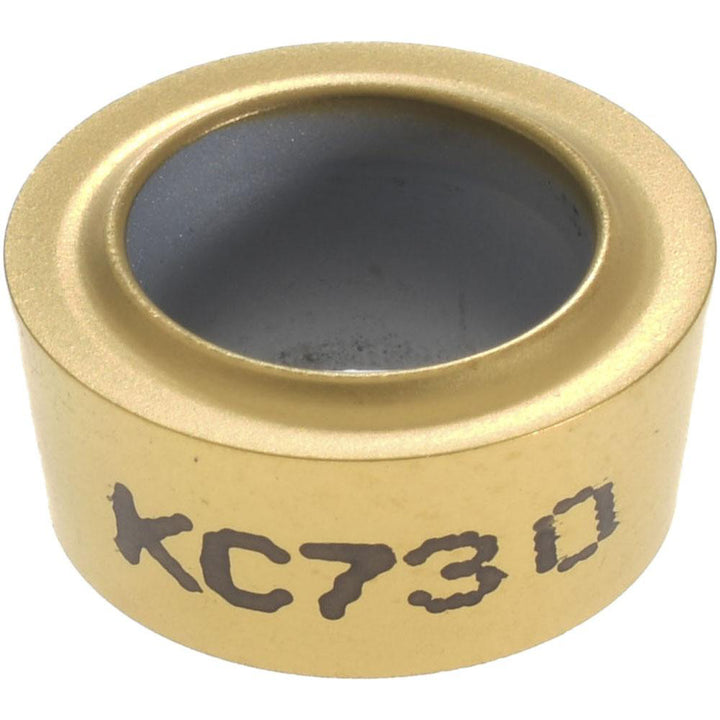

R - Round 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161987

Kennametal

R - Round 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161987

MFR# 1161987ISO/ANSI# RCMT097300Series Screw-On

$20.89List $25.50 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeR - Round
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161987 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeRCMT32.5
Ansi size code32.5
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle360
Industry standard numberRCMT325
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert shapeR - Round
Insert size code32
Insert styleRCMT
Insert thickness in5/32
Iso insert codeRCMT097300
Iso size code097300
Length range0.3000 - 0.4000
Manufacturers catalog number1161987
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
