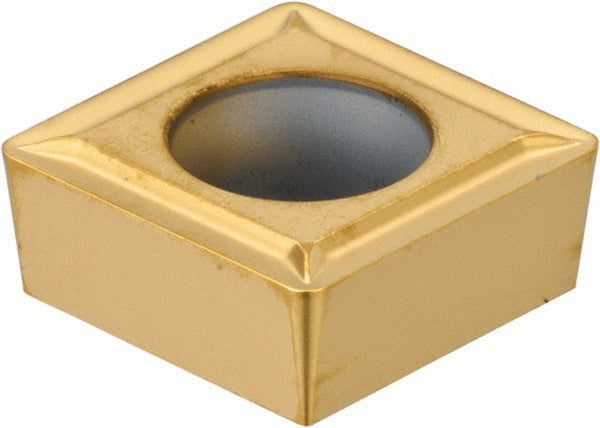

S - Square 1/2" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161997

Kennametal

S - Square 1/2" IC Carbide Insert, Grade KC730, TiN - Kennametal 1161997

MFR# 1161997ISO/ANSI# SCMT120408Series Screw-On

$33.20List $40.52 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1161997 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeSCMT432
Ansi size code432
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle90
Industry standard numberSCMT432LF
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code432
Insert styleSCMT
Insert thickness in3/16
Iso insert codeSCMT120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number1161997
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
