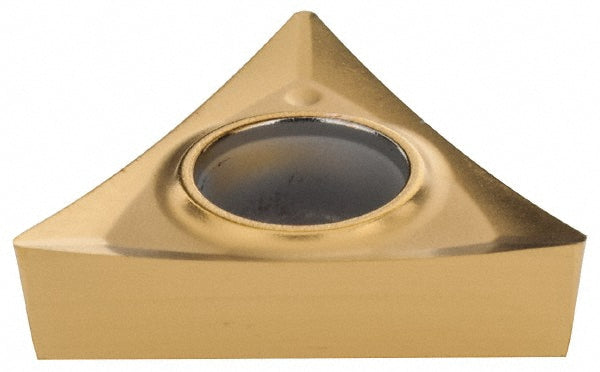

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1162005

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1162005

MFR# 1162005ISO/ANSI# TCGT16T304Series Screw-On

$35.71List $43.58 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1162005 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTCGT3251
Ansi size code3251
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle60
Industry standard numberTCGT3251HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTCGT
Insert thickness in5/32
Iso insert codeTCGT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number1162005
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
