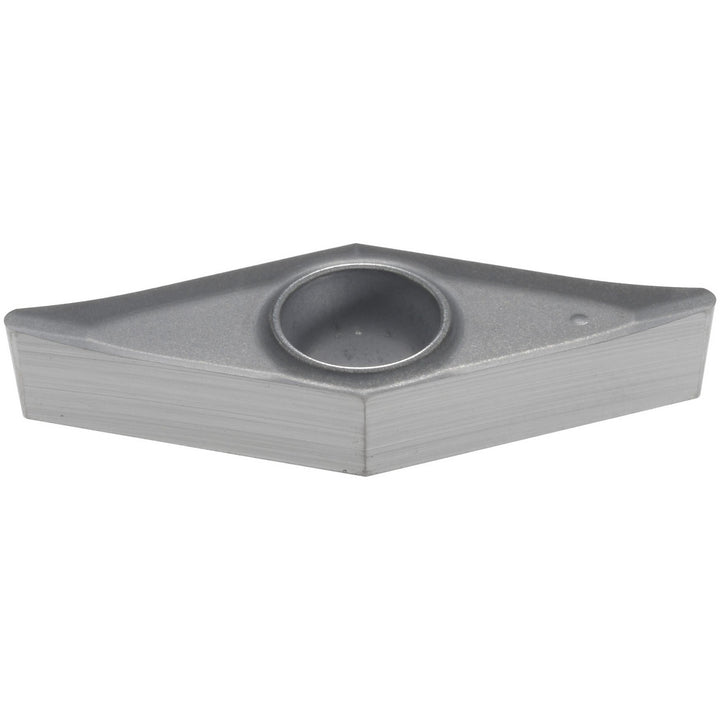

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162229

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162229

MFR# 1162229ISO/ANSI# VBGT160408Series Screw-On

$38.83List $47.40 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeK313
MaterialCarbide

Description

The Kennametal 1162229 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeVBGT332
Ansi size code332
Chip breakerHP
Chip breaker operationFinishing
Clearance codeB
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle35
Industry standard numberVBGT332HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBGT
Insert thickness in3/16
Iso insert codeVBGT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number1162229
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
