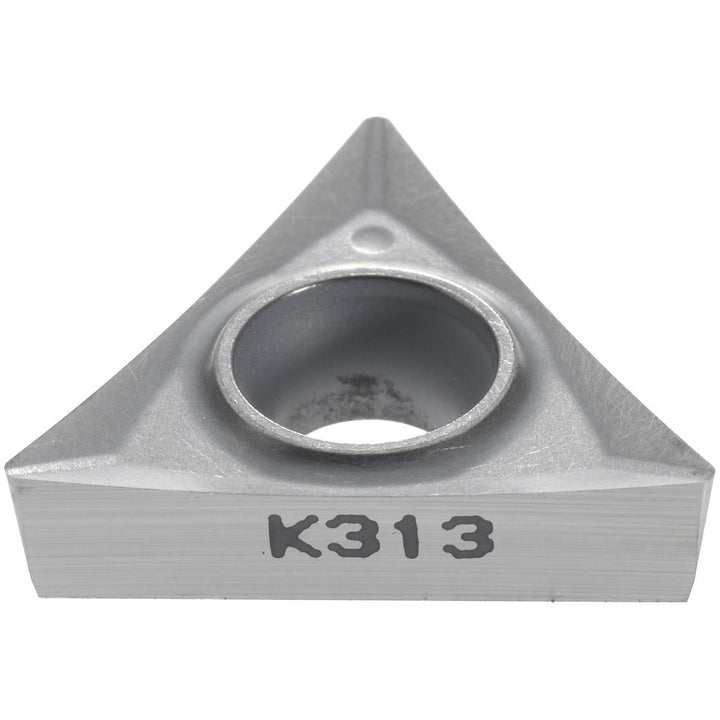

T - Triangle 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162255

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade K313 - Kennametal 1162255

MFR# 1162255ISO/ANSI# TCGT16T304Series Screw-On

$31.00List $37.84 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeK313
MaterialCarbide

Description

The Kennametal 1162255 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeTCGT3251
Ansi size code3251
Chip breakerHP
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle60
Industry standard numberTCGT3251HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTCGT
Insert thickness in5/32
Iso insert codeTCGT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number1162255
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle15
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
