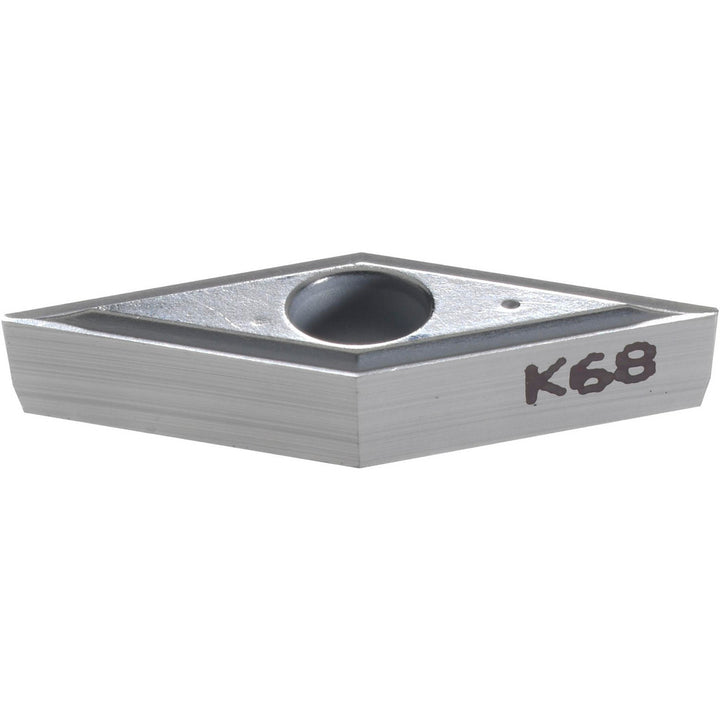

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade K68 - Kennametal 1162288

Kennametal

V - Diamond (Rhombic) 35-Deg 1/4" IC Carbide Insert, Grade K68 - Kennametal 1162288

MFR# 1162288ISO/ANSI# VBGT110302Series Screw-On

$34.65List $42.29 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeK68
MaterialCarbide

Description

The Kennametal 1162288 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeVBGT2205
Ansi size code2205
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeB
Coating processUncoated
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1102
Included angle35
Industry standard numberVBGT2205LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBGT
Insert thickness in1/8
Iso insert codeVBGT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number1162288
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
