Kennametal

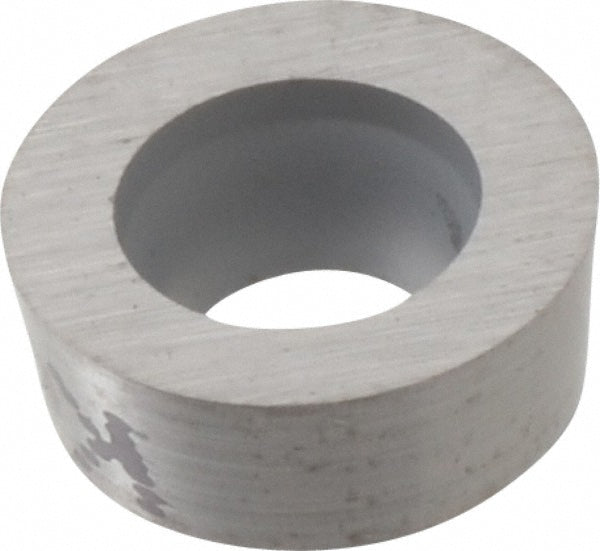

R - Round 1/4" IC Carbide Insert, Grade K68 - Kennametal 1162294
MFR# 1162294ISO/ANSI# RCGW060200Series Screw-On
$20.71List $25.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeR - Round
GradeK68
MaterialCarbide
Description
The Kennametal 1162294 is a carbide indexable insert, grade K68.
Specifications
Ansi insert codeRCGW215
Ansi size code215
Chip breakerW
Clearance codeC
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1102
Industry standard numberCNMG432FF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code215
Insert styleRCGW
Insert thickness in3/32
Iso insert codeRCGW060200
Iso size code060200
Manufacturers catalog number1162294
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
