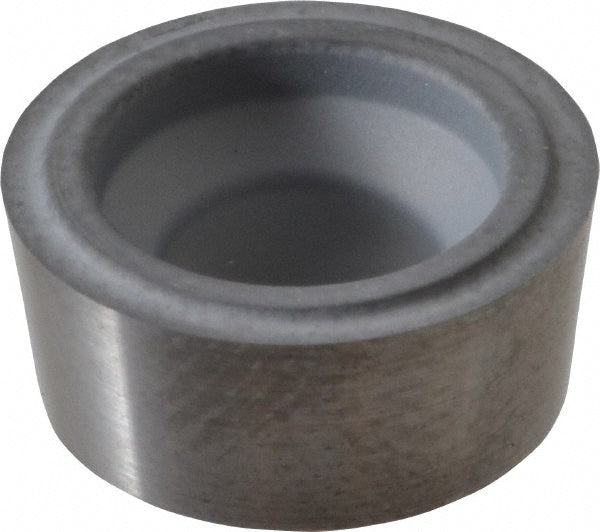

R - Round 3/8" IC Carbide Insert, Grade K68 - Kennametal 1162295

Kennametal

R - Round 3/8" IC Carbide Insert, Grade K68 - Kennametal 1162295

MFR# 1162295ISO/ANSI# RCGM09T300Series Screw-On

$23.47List $28.65 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeR - Round
GradeK68
MaterialCarbide

Description

The Kennametal 1162295 is a carbide indexable insert, grade K68.

Specifications

Ansi insert codeRCGM325
Ansi size code325
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeC
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Industry standard numberDNMG432RN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeR - Round
Insert size code325
Insert styleRCGM
Insert thickness in5/32
Iso insert codeRCGM09T300
Iso size code09T300
Manufacturers catalog number1162295
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeG
