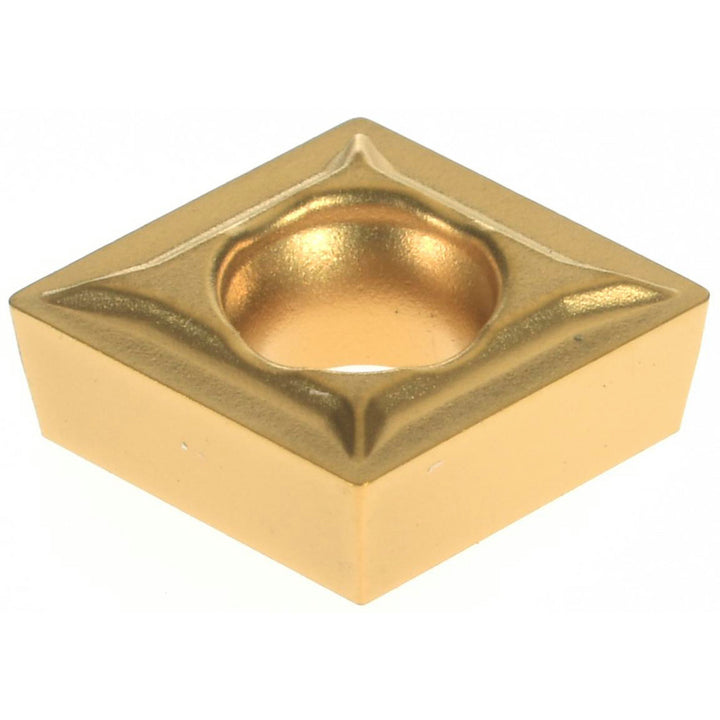

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162356

Kennametal

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162356

MFR# 1162356ISO/ANSI# CCMT060202Series Screw-On

$24.92List $30.41 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1162356 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeCCMT21505
Ansi size code21505
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeC
Coating finishTiC
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1142
Included angle80
Industry standard numberCCMT21505LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21505
Insert styleCCMT
Insert thickness in3/32
Iso insert codeCCMT060202
Iso size code060202
Length range0.0000 - 0.3000
Manufacturers catalog number1162356
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
