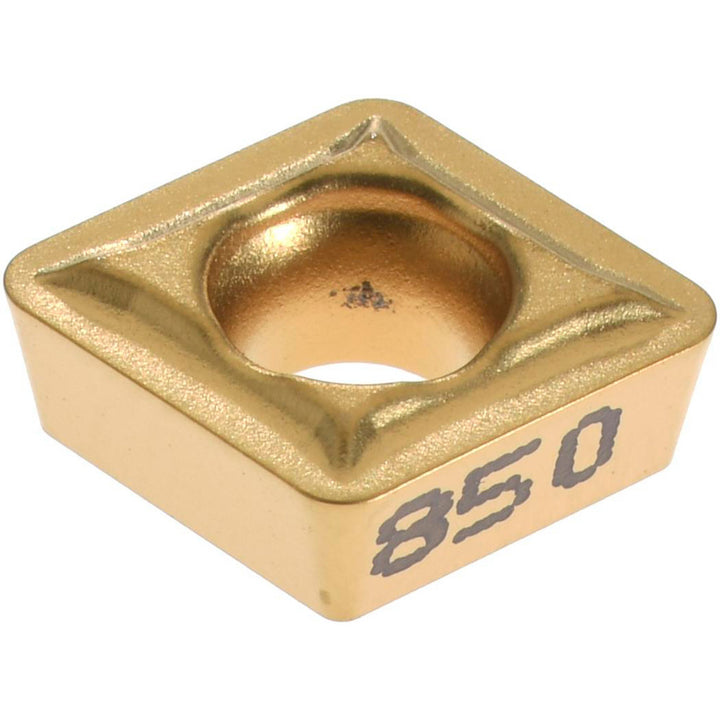

C - Diamond (Rhombic) 80-Deg 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162369
MFR# 1162369ISO/ANSI# CPMT060208Series Screw-On
$25.79List $31.47
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1162369 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeCPMT2152
Ansi size code2152
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1102
Included angle80
Industry standard numberCPMT2152LF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2152
Insert styleCPMT
Insert thickness in3/32
Iso insert codeCPMT060208
Iso size code060208
Length range0.0000 - 0.3000
Manufacturers catalog number1162369
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
