Kennametal

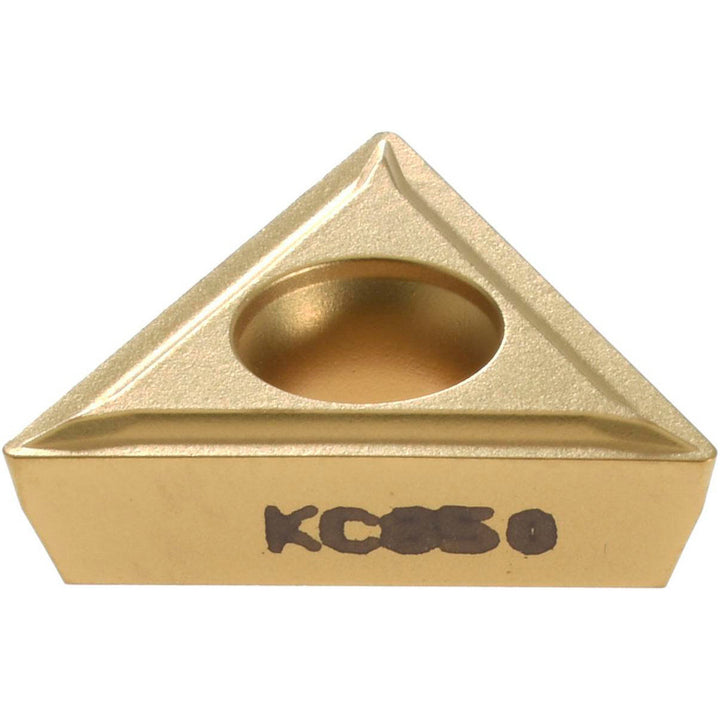

T - Triangle 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162394
MFR# 1162394ISO/ANSI# TPMT16T304Series Screw-On
$33.02List $40.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1162394 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeTPMT3251
Ansi size code3251
Chip breakerLF
Chip breaker operationFinishing; Light Machining
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Hole diameter0.1732
Included angle60
Industry standard numberTPMT3251LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code3251
Insert styleTPMT
Insert thickness in5/32
Iso insert codeTPMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number1162394
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
