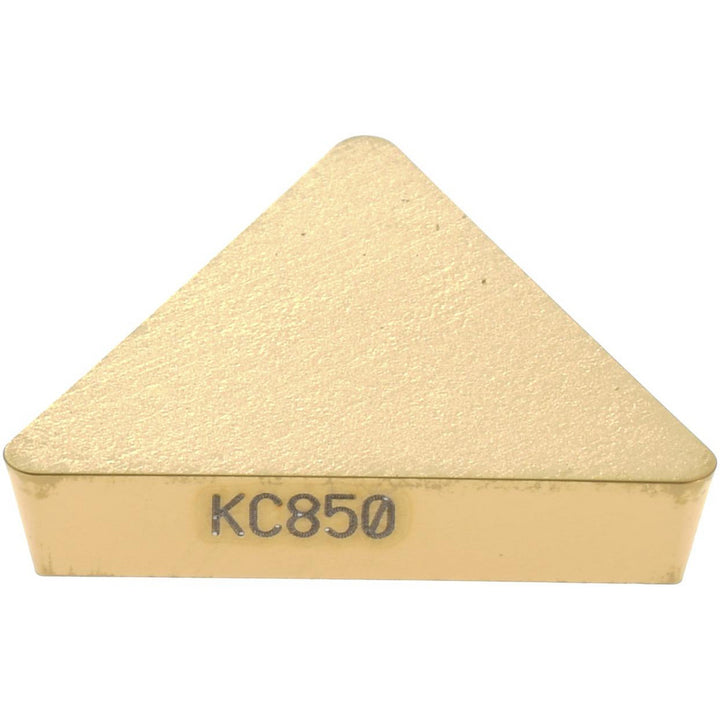

T - Triangle 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162776

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162776

MFR# 1162776ISO/ANSI# TPU160308Series KENDEX

$23.61List $28.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1162776 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeTPU322
Ansi size code322
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle60
Industry standard numberTPU322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code322
Insert styleTPU
Insert thickness in1/8
Iso insert codeTPU160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturers catalog number1162776
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeU
Width0.6496
Wiper edgeNo
